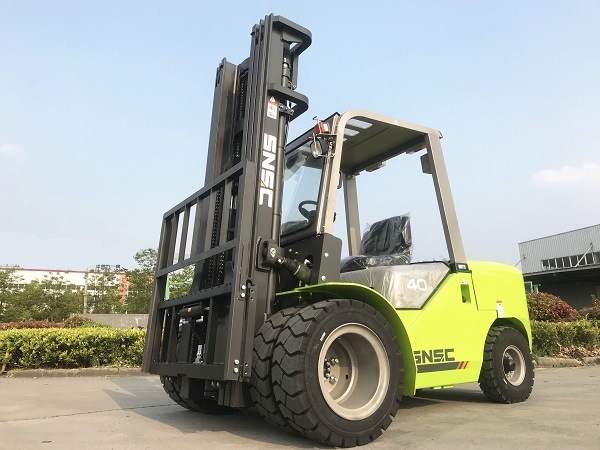

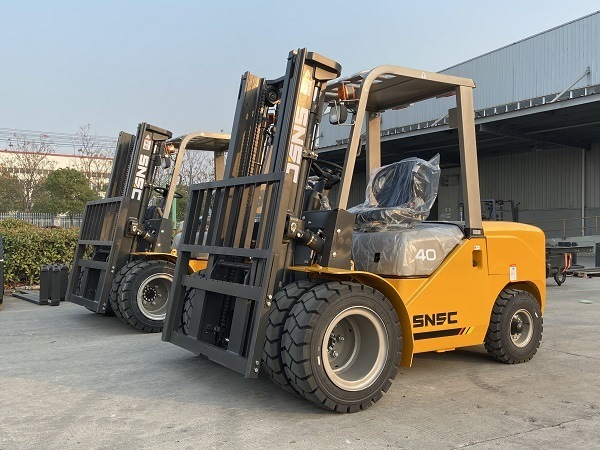

3-7m Lifting Height Snsc Forklift 4tn Powered by Xinchai/Japan Isuzu Engine

Model NO. : FD40

Lift height : 3000~5000mm

Condition : New

Name : Snsc Forklift 4tn

Engine Brand : China Xinchai/Japan Isuzu

Side Shift : Optional

Transmission : Auto Hydraulic

Mast : 2 Stage /3 Stage

Lifting Height : 3-7m

Color : Red/Yellow/Green

Tyre : Pneumatic /Solid

OEM Service : Yes

Forklift Attachments : Paper Roll Clamp

Transport Package : 20 Feet Container

Specification : 2695*1230*2055mm

Trademark : SNSC

Origin : China

HS Code : 84272090

Supply Ability : 500/Months

Cab Location : Adjustable

Type : Powered Pallet Truck

Power : Diesel Engine

Load Capacity : 1T - 5T

Fuel : Diesel

Load center : 500mm

Customization : Available | Customized Request

Place of Origin : china

Brand Name : snsc

Certification : CE/ISO

MOQ : 1 unit

Price : negotiable

Packaging Details : shipped by container

Delivery Time : 30-45 Days

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now

What makes our SNSC forklift 4tn special:

(1)Automatic electric hydraulic transmision with fingure;
(2)Japan hydraulic system,by using  Shimadzu valve and pump;
(3)Original USA Eaton redirector;
(4)Rain-proof overhead guard;
(5)Copper radiator;
(6)Luxury seat with armest and belt;
(7)Cylinder anti-dust protection;
(8)Lamp protection;

3-7m Lifting Height Snsc Forklift 4tn Powered by Xinchai/Japan Isuzu Engine

Model FD40
Features Power type   Diesel
  Rated Load kg 4000
  Load Center mm 500
  Lifting Height mm 3000
  Free Lifting Height mm 85
  Fork Size L*W*T mm 1070x150x50
  Mast Tilt Radius Front/Rear . 6/12
  Minimum Turning Radius mm 2700
  Minimum Stacking Right Angle Channel Width mm 4400
  Minimum Right Angle Channel Width mm 2685
  Minimum Ground Clearance mm 120
  Overhead Guard Height mm 2090
  Front Overhang mm 500
Performance Max. Traveling Speed Full load km/h 18.5
  Max. Lifting Speed Full load mm/s 410
  Max. Traction Full load KW 20
  Max. Climbing Ability % 20
Dimension Overall Length Without Fork mm 2930
  Overall Width mm 1410
  Max. Fork Lifting height (With Load Backrest) mm 4270
  Mast Height mm 2155
Chassis Tyre Front   250-15-160PR
    Rear   6.50-10-10PR
  Wheel Base mm 1900
  Wheel Tread Front/Rear mm 1160/1065
  Curb Weight Without Load Kg 5300
Power Battery Voltage/Capacity V/Ah 12/90
  Engine Model   Xinchai/Japan Isuzu engine
    Rated Power kw/r.p.m 45/2500
    Rated Torque Nm/r.p.m 193/1600-1800
    Bore*Stroke mm 98x105
    Cylinder Amount   4
    Displacement L 3.168
  Fuel Tank Volume L 80
  Gears front/back   2/2Manual Shift
  Working Pressure Mpa 17.5


3-7m Lifting Height Snsc Forklift 4tn Powered by Xinchai/Japan Isuzu Engine
3-7m Lifting Height Snsc Forklift 4tn Powered by Xinchai/Japan Isuzu Engine

3-7m Lifting Height Snsc Forklift 4tn Powered by Xinchai/Japan Isuzu Engine




What kinds products we are selling:

1. Diesel Forklift Truck;
2. Electric Forklift Truck;
3. LPG & Gasoline Forklifts;
4.2WD & 4WD rough terrain forklifts
5. Warehouse Logistic Reach Truck / Pallet Truck / Stacker /order picker,etc;
3-7m Lifting Height Snsc Forklift 4tn Powered by Xinchai/Japan Isuzu Engine

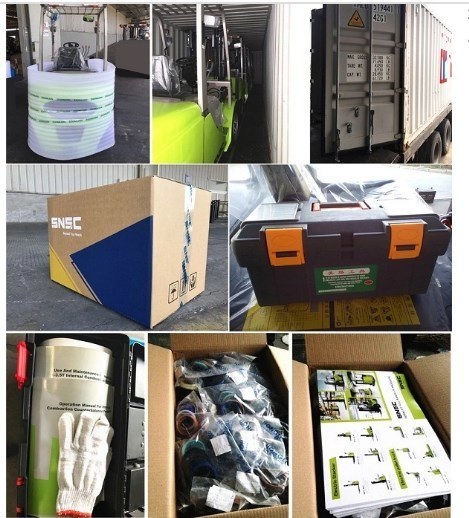

Package:
Packing Details  :40GP can hold  3pcs SNSC forklift 4tn;
Delivery Details : 30 days

3-7m Lifting Height Snsc Forklift 4tn Powered by Xinchai/Japan Isuzu Engine
