Product Name
3 Ton Diesel Forklift Truck Heavy Duty 3000kg Load Capacity Smooth Hydraulic Lift
Product Advantages
The SNSC FD30 3-Ton Diesel Forklift combines power, reliability, and efficiency for modern warehouses, logistics operations, and industrial environments.
Its reinforced chassis, heavy-duty mast, and high-performance diesel engine ensure safe, smooth, and stable lifting even under continuous heavy loads.
Highlights:
-
3-ton (3000 kg) lifting capacity for demanding tasks
-
Smooth hydraulic lifting for precise load control
-
Durable chassis and mast for long-term reliability
-
Ergonomic operator cabin with wide-view mast
-
Low maintenance design, suitable for indoor/outdoor use
Product Introduction
Function & Features:
-
3000 kg rated load with 500 mm load center
-
High-performance diesel engine with efficient power output
-
Hydraulic mast and fork control for precise lifting and tilting
-
Pneumatic tires for superior traction and stability
-
Ergonomic operator cabin reduces fatigue during long shifts
-
Reinforced frame for maximum safety and durability
Application Scenarios:
The FD30 is ideal for:
-
Warehouse and logistics centers — pallet stacking and material handling
-
Industrial manufacturing plants — assembly line support and transport
-
Construction sites — moving building materials and equipment
-
Ports and freight terminals — container loading/unloading
-
Outdoor heavy-duty tasks — uneven terrain, long working hours
Working Principle:
The diesel engine drives the hydraulic system, creating pressure to lift and tilt the forks while mechanical transmission ensures smooth forward and reverse motion.
The forklift combines precision control with stability, making it suitable for all material-handling scenarios.
Product Parameters
| Specifications | Unit | FD30 |
| 1 | Characteristics | Power | — | diesel |
| 2 | Rated Capacity | kg | 3000 |
| 3 | Center of load | mm | 500 |
| 4 | Lifting height | mm | 3000 |
| 5 | Free lifting height | mm | 145 |
| 6 | Forks L×W×H | mm | 1070×125×45 |
| 7 | Tilt Forward/Backward | . | 6/12 |
| 8 | Min.turning radius | mm | 2600 |
| 9 | Min.ground clearance(Mast) | mm | 120 |
| 10 | Overhead guard height | mm | 2170 |
| 11 | Front overhang | mm | 545 |
| 12 | Performance | Max.traveling speed(loaded) | km/h | 20 |
| 13 | Max.lifting speed(loaded/empty) | mm/s | 470/520 |
| 14 | Drawback pull/Grade ability | kN/% | 18/20 |
| 15 | Dimensions | Overall length (without fork) | mm | 2825 |
| 16 | Overall width | mm | 1230 |
| 17 | Mast lowered height | mm | 2065 |
| 18 | Mast extended height | mm | 4260 |
| 19 | Chassis | Tire | Front | — | 28×9-15-12PR |
| 20 | Rear | — | 6.50-10-10PR |
| 21 | Wheelbase | mm | 1800 |
| 22 | Tread width | Front/Rear | mm | 1000/970 |
| 23 | Curb weight | None-load | kg | 4250 |
| 24 | Powertrain | Battery | Voltage/Capacity | V/Ah | 12/90 |
| 25 | Engine | Model | — | XC490BPG |
| 26 | Rated power | kw/r.p.m | 37/2650 |
| 27 | Rated torque | Nm/r.p.m | 148/2000 |
| 28 | Cylinder amount | — | 4 |
| 29 | Bore×Stroke | mm | 90×105 |
| 30 | | Displacement | — | 2.54 |
| 31 | Fuel tank | L | 70 |
| 32 | Transmission | — | 1/1 automatic transmission |
| 33 | Working pressure | MPa | 17.5 |
Description:
(1)Auto electric hydraulic transmission by TCM technology, just use your finger can achieve the forklift's forward and backward;
(2)Japan hydraulic system, by using Shimadzu brand Valve and Pump;
(3)USA Eaton steering gear;
(4)LED light, with long durability time;
(5)Copper Water tank, with better heat radiation;
(6)Red/yellow/green colors for your reference.
Common Optionals:
Japan Isuzu/Mitsubishi engine,Side shifter,Double front tires,Solid tire,Double air filter,Vertical exhaust,fork extension,Cab,Fork positioner.

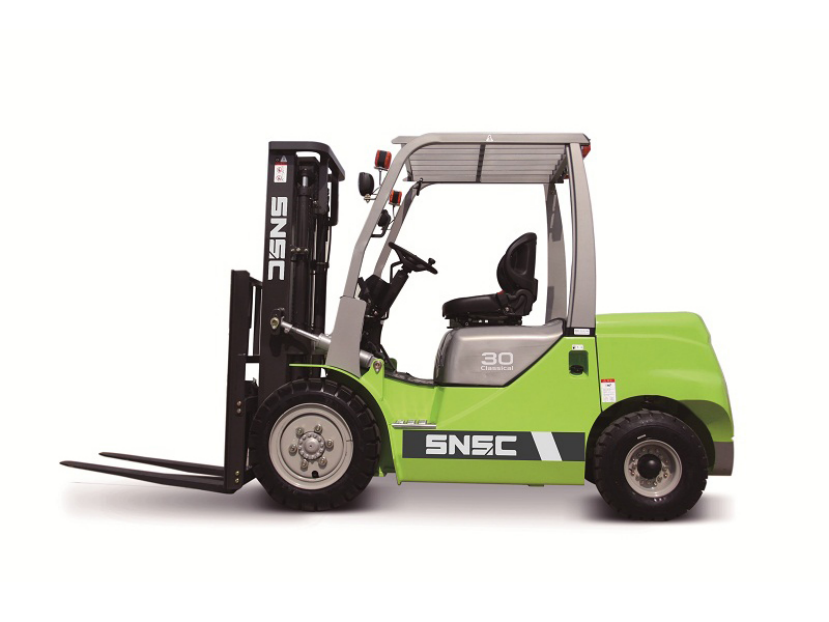

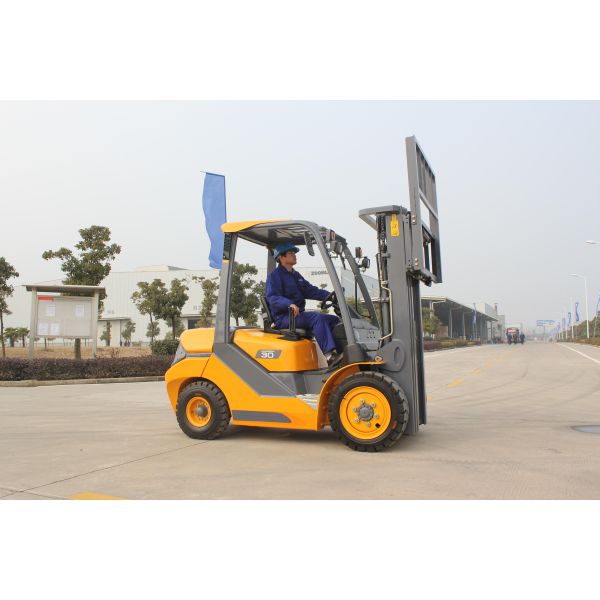

Product Pictures
